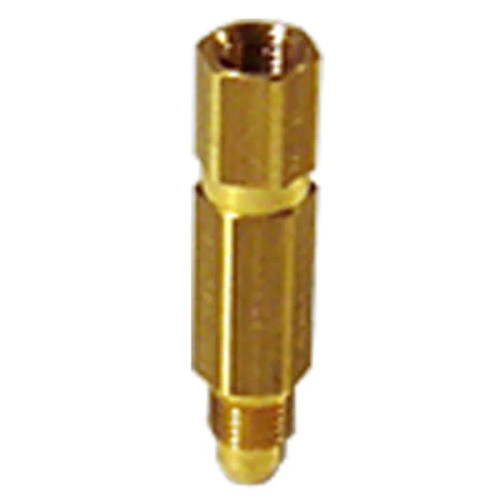

ZJBE Injectors
The only injector in the Z range built for a single-line resistance system, and the only one rated to 2,500 psi. It threads in on 1/8 NPT at both ends, and it is also the only Z injector that will handle soft grease as well as oil.
- Working pressureUp to 2,500 psi (172 bar)
- Recommended300–1,500 psi (21–103 bar)
- Connections1/8 NPT inlet and outlet
- BodySteel
- LubricantOil and soft grease
- Discharge sizes0.01, 0.025, 0.06, 0.10, 0.20, 0.30, 0.40 cc
The high-pressure option, and the grease-capable one
If your system runs soft grease rather than oil, the ZJBE is the only Z Series injector rated for it — the ZJBM, ZEE and ZEG are oil only. It is also the only one for a resistance system; do not fit it in place of a PDI injector without checking the line pressure.
