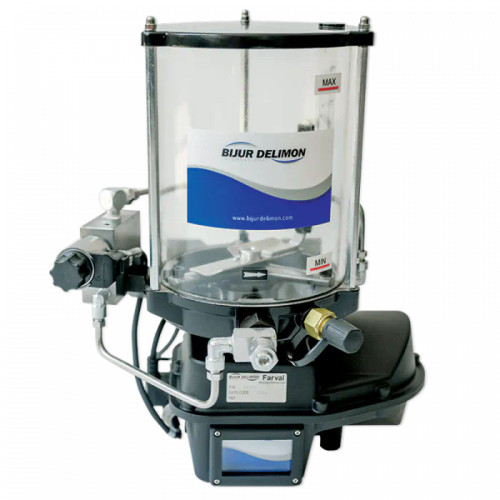

MultiPort II
A PDI lubricator with several outlets on the pump itself, so short runs go straight to the bearings without a separate distribution network. Every unit runs on 24 VDC — there is no mains-voltage option in this family — and the rest of the specification is carried in the part number.
Reading the part number
Every character after 55656- sets one option. A trailing B means BSPP threads; no trailing letter means standard NPT.- 55656 Series
- C / X C — integral controller X — no controller
- 3 / 7 Reservoir, litres
- L / P / X L — NPN level switch P — PNP level switch X — none
- H / L / V H — high pressure L — low V — very low
- U / Z U — ISO 7241-1B coupling Z — Zerk fitting
So 55656-C3LHU is a 3 litre unit with an integral controller, NPN low-level switch, high pressure rating, ISO 7241-1B fill and NPT threads. Add a B — 55656-C3LHUB — and the same unit comes with BSPP threads.
What is available
Counts across the 28 listed units, so you can see which combinations are stocked configurations and which are less common.- ControllerIntegral 14 · none 14
- Reservoir3 L ×18 · 7 L ×10
- Level switchNPN ×22 · none ×5 · PNP ×1
- Pressure ratingHigh ×17 · low ×9 · very low ×2
- Fill connectorISO 7241-1B ×21 · Zerk ×7
- ThreadsNPT ×16 · BSPP ×12
Every MultiPort II is 24 VDC. If the machine has no 24 VDC supply, this family is not an option — SureFire II and V5W both offer mains voltages, and SureFire II is the one to look at if you also need a choice of PDI or SLR distribution.
Replacing an existing unit? Read the code off the nameplate and match it character for character. Send us that part number, or a photo, and we will confirm the configuration and the thread standard before you order.
