FJD Meter Units
Replacing an existing part?Send us the part number or a photo of the nameplate and we will confirm the match, or the current successor part number, before you order.
Request a QuoteJunction type — thin body

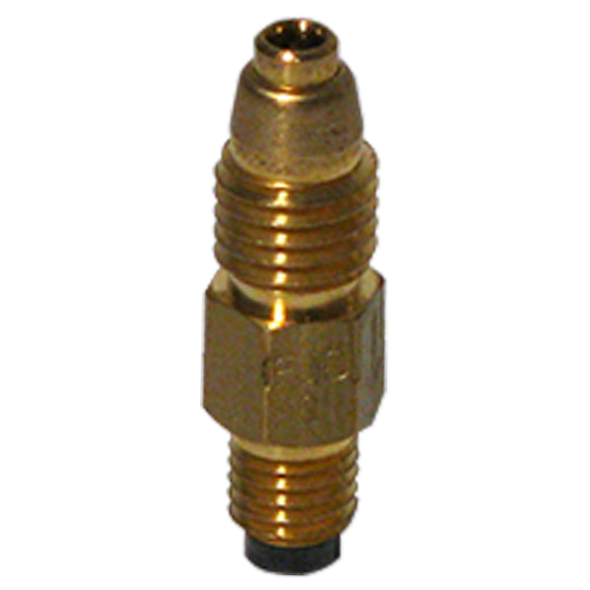

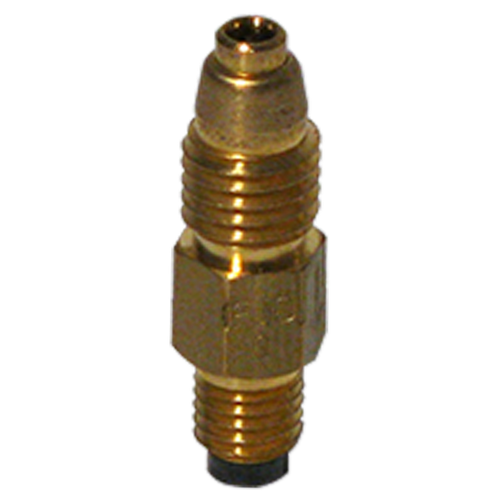

FJD Meter Units
Thinner than a standard junction unit and with closer hole spacing, so more points fit in the same header length. Made from 5/16 in hexagon bar with a 1/4-28 outlet thread to take the 5/16 hex compression nut, part B3610.
- Thread standardInch (F prefix)
- MountsTight-pitch junction headers
- Connection1/4-28 outlet, B3610 compression nut
- Flow rates3/0 through 5
Needs the B3610 nut
The 1/4-28 outlet takes the 5/16 hex compression nut, part B3610 — not the fitting used on FJB or FJC. Order the nut with the unit if you do not have spares.
Request a Quote All meter units & how to read the part number
