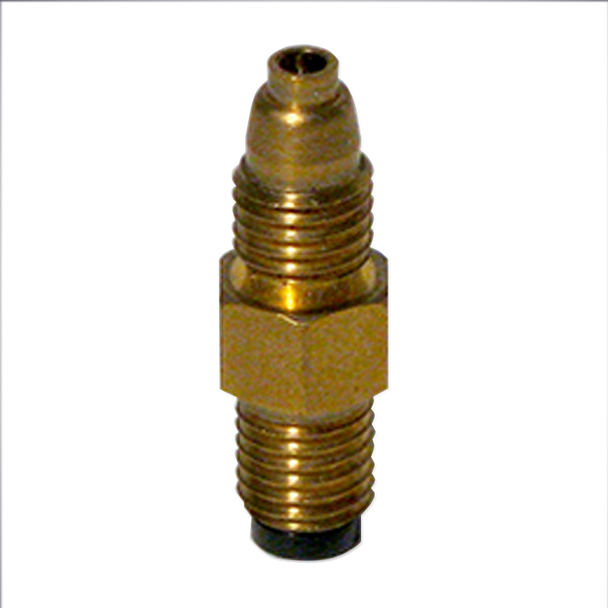

Name: Bijur Delimon 15323-4 AJB Meter Unit, Extra Fast Flow Value 4, Metric Thread, Junction Type
Brand: Bijur Delimon
SKU: 15323-4
Price: 19.29 USD
Availability: InStock

Product Overview

Bijur Delimon Meter Unit

Bijur Delimon 15323-4 AJB Meter Unit, Extra Fast Flow Value 4, Metric Thread, Junction Type

Part Number / SKU: 15323-4 | Manufacturer: Bijur Delimon | Availability: Made to Order - Lead Time: 25-35 business days

Overview

Bijur Delimon 15323-4 (factory description: MU AJB-4). Bijur single-line resistance (SLR) meter units: small fixed-orifice fittings that split each oil shot from a cyclic lubricator between bearing points, each with its own inlet filter and outlet check valve.

Specifying, quoting, or replacing 15323-4

Add to cart at the price shown, or use the Request a Quote form: send the part number 15323-4, the quantity, and a photo of the nameplate or the old part, and we reply the same day. L. DeWitt McCarter is an authorized Bijur Delimon, Farval and LubeSite distributor in San Antonio, TX — (210) 494-1997.

Key Specifications

Manufacturer part number	15323-4
Brand	Bijur Delimon
Selling unit	Each (1 piece)
Symbol stamped on hex body	AJB-4
Thread family / check valve	Metric thread; 5 lb outlet check valve
Style	Junction type: threads into a junction or junction bar; tail tube runs to the bearing
Inlet thread	M8x1
Outlet thread	M8x1 for 5/32 in or 4 mm tube
Flow rate	4 = Extra fast
Relative flow	Each rate step doubles flow: about 2x the flow of AJB-3; about half the flow of AJB-5
Use with	Cyclic lubricators only; not continuous pumps (use Type C control units)
Junction bars	M8x1 die-cast bars 20348-4 (4-way) to 20348-12 (12-way)
How it works	Inlet filter + fixed orifice & pin restrictor + outlet check valve
System type	Cyclic single-line resistance (SLR) oil systems
Flow direction	One direction only; arrow stamped on body
Rate codes	3/0, 00, 0, 1, 2, 3, 4, 5 (slow to fast); each step doubles flow
Identification	Letter/number symbol stamped on the flat of the hex body

What You'll Also Need

For junction-type units (FJB/FJC/FJD): Junction bars: die-cast 5/16-24 B3262 to B3471 (single) or B3109 to B4025 (double) for FJB/FJC; aluminum B4498 to B3772 or B3785 to B3789 for FJD (B151 p.52-55)
5/32 in tube connections: compression nut B1095 or bushing B1371 with sleeve B1061 (metal tube) or B8272 (nylon tube) (B151 p.18-19)
A 25 µm line filter in the main line near the lubricator whenever meter units are used: 19850 (1 in) or 19848 (3 in) (DS 24117)
FJB starter kits with units, junction bar, fittings and 5N25 tube: 32567 (4 points), 32568 (6 points), 32569 (8 points) (B151 p.37)

Before You Order

Meter units are for cyclic lubricators only (L2P, L5P, L5H, L18P, HAP-P, TM-1, TMD-5). V5B, V5W and V5 continuous pumps need Type C control units (DS 35470; DS 36734).
Stay inside the lubricator's max total system flow (ø) table: L2P max 60 Type F units, L5P/L18P max 70; the TM-1 table stops at 20 units (DS 24797; DS 21967; DS 35477).
Units feed one way only: fit them with the arrow stamped on the body pointing toward the bearing (DS 35470).
Metric A-units use M8x1, 'very close to' but not the same as 5/16-24: use M8x1 bars 20348-x with AJB, 5/16-24 bars with F-units (DS 35470; B151 p.52-54).
Converting to a SureFire II pump: system pressure must reach about 10 psi to open the 5 lb meter-unit check valves (TS015).

Choosing Between Options

Standard rates are 00 to 3; 3/0 and 5 are for special situations. Each step up in rate doubles the oil to that point (DS 35470).
FJB (junction mount, 5/32 in tail tube) is the most used type; FJC takes a 3/32 in tail tube; FJD is a thinner, closer-spaced unit with a 1/4-28 outlet (DS 35470).
FSA/FSB screw into the bearing tap (1/8 NPT / 1/8 BSPT); FKA/FKB/FKD/FKE insert into a tapped drilled passage with no tubing (DS 35470).
FRA/FRC take oil from a pressurized drilled passage (1/8 NPT in) out to a tail tube; FB and FT tee types work with junction headers (DS 35470).
