Bijur Delimon Manual Lubricator

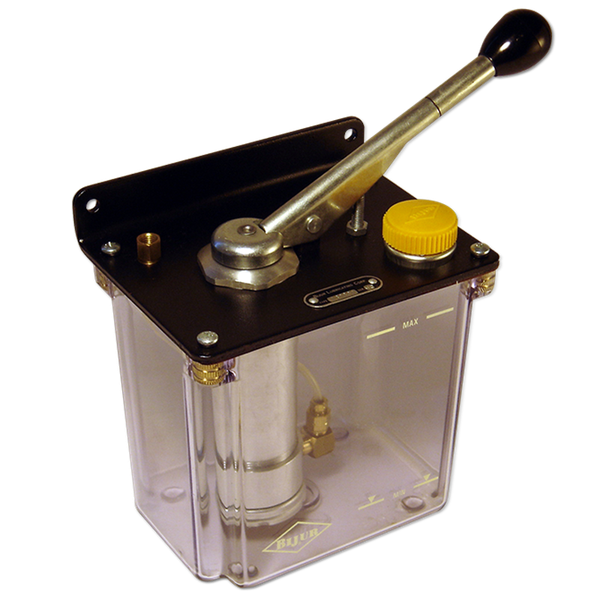

Bijur Delimon 20858 Lubricator L18P-R with 1L Reservoir Metal
Part Number / SKU: 20858 | Manufacturer: Bijur Delimon | Availability: In Stock at Factory - Ships in 3-5 Business Days
Overview
Bijur Delimon 20858 (factory description: LUB L18P-R W/1L RES MET'L). Bijur hand-operated lubricators, kits and service parts. Most models are one-shot piston pumps: work the handle and a spring pushes a measured oil shot through the line to Type F meter units.
Specifying, quoting, or replacing 20858
Add to cart at the price shown, or use the Request a Quote form: send the part number 20858, the quantity, and a photo of the nameplate or the old part, and we reply the same day. L. DeWitt McCarter is an authorized Bijur Delimon, Farval and LubeSite distributor in San Antonio, TX — (210) 494-1997.
Key Specifications
| Manufacturer part number | 20858 |
| Brand | Bijur Delimon |
| Selling unit | Each (1 piece) |
| Operation | Push handle; spring-return piston pump |
| Discharge per stroke | 6-18 cc, infinitely adjustable; factory 18 cc |
| Discharge pressure | 65 psi max |
| Viscosity | 150-8,000 SSU at operating temperature |
| Inlet filter | 40 µm; filter group S109 |
| Max meter units | 70, Type F |
| Outlet | 5/16-24 for 5/32 in OD tube (nut B1095 + sleeve) |
| Handle | Right hand (L18P-R) |
What You'll Also Need
- Type F meter units, one per lube point (e.g. FJB junction or FSA straight types) (DS 35470)
- Spare inlet filter group: S109 (L5P, L5H, L18P), S178 (L2P), S130 (HAP-P/HIP-P) (005-B; DS 21967; DS 24797; DS 24375)
- Filler cap B9230C (L5P, L5H, L18P, HAP-P) (DS 21967; DS 24373; DS 21968; DS 24375)
- 5/32 in tube on L5P's 5/16-24 tapped outlet: compression bushing B1371 + sleeve B1061 (DS 21967)
Before You Order
- All identified parts are the same for L18P-R and L18P-L (DS 21968).
- Legacy metal-reservoir L18P (TDS 2246). The current plastic-reservoir versions are D3033C (right) and D3217C (left) (DS 21968).
- Handle side matters: L5P right D3174C / left D3173C; L18P right D3033C / left D3217C (DS 21967; DS 21968).
- Meter-unit limits: L2P 60, L5P and L18P 70 (HAP-P table runs to 70); total system flow (ø) must stay within the cc-per-shot table on the data sheet (DS 24797; DS 21967; DS 21968; DS 24375).
- Discharge pressure falls as shot size drops and the number of meter units rises (DS 21967; DS 24375).
- Inspect the 40 µm inlet filter every six months and replace the filter group annually (DS 21968; DS 24373).
Choosing Between Options
- L2P: 1 or 2 cc fixed, 200 cc, compact machines. L5P: 1-5 cc adjustable, 475 cc, small/medium machines. L18P: 6-18 cc, 1 L, larger systems (DS 24797; DS 21967; DS 21968).
- L5H D3274C: pull tee-handle, fixed 5 cc. L5H-3 D3508C adds 3-outlet junction 22171 (DS 24373).
- HAP-P D3221C (push lever) or HIP-P D3204C (pull handle): 5-15 cc, 475 cc reservoir (DS 24375; 005-B).
- For automatic feed on the same Type F meter units: TM-1 (0.2-1.0 cc/cycle) or TMD-5 (1-5 cc/cycle) (DS 35477; DS 24117).
