Bijur Delimon TMD-5 Lubricator

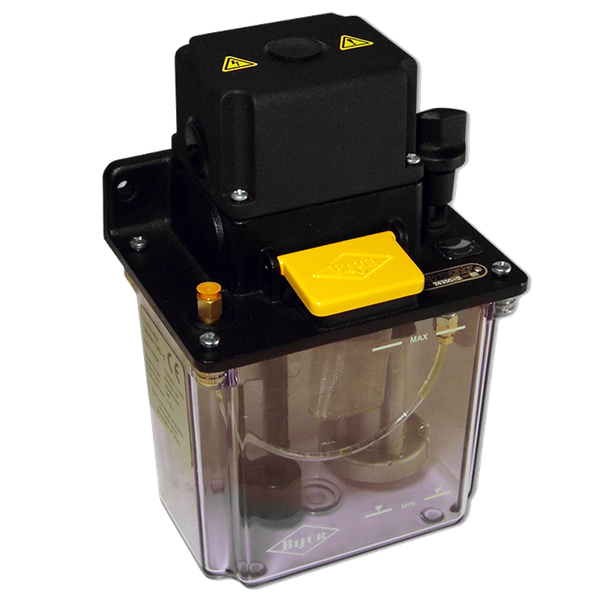

Bijur Delimon 26517-6 Lubricator TMD5 Black 106 Minute 4L
Part Number / SKU: 26517-6 | Manufacturer: Bijur Delimon | Availability: Made to Order - Lead Time: 60-70 business days
Overview
Bijur Delimon 26517-6 (factory description: LUB TMD5 BLK 106 MIN 4L). Bijur TMD-5 automatic cyclic lubricators: a gear-reduction motor drives a spring-discharge piston pump that sends an adjustable oil shot to Type F meter units at a fixed interval; low-level switch standard.
Specifying, quoting, or replacing 26517-6
Add to cart at the price shown, or use the Request a Quote form: send the part number 26517-6, the quantity, and a photo of the nameplate or the old part, and we reply the same day. L. DeWitt McCarter is an authorized Bijur Delimon, Farval and LubeSite distributor in San Antonio, TX — (210) 494-1997.
Key Specifications
| Manufacturer part number | 26517-6 |
| Brand | Bijur Delimon |
| Selling unit | Each (1 piece) |
What You'll Also Need
- 25 µm line filter in the main line near the lubricator whenever meter units are used: 19850 (1 in) or 19848 (3 in) (DS 24117)
- Pressure gauge B5610 (0-100 psi) downstream of the filter for a visual cycle check (DS 24117)
- Pressure switch for electronic monitoring: 26410 (SPST N.O., 12 psi) or 26393 (SPST N.C., 10 psi) (DS 24117)
- Spare filter group kit 26361 (spring clip 20577, filter disc B3747, filter screen B3746) (DS 24117)
- Type F meter units, one per lube point (DS 35470)
Before You Order
- Special or OEM version not listed on DS 24117. Order by the P/N on the nameplate; shot size, reservoir and cycle may differ from the standard 26350 models.
- Cycle time is fixed by the motor: 26350-1 to -6 run 6.4 to 128 min at 50 Hz (5.3 to 106.7 min at 60 Hz). Pick the dash number for the interval you need (DS 24117).
- The main supply must be fused; the lubricator has no internal protection (DS 24117).
- Not for explosive atmospheres or for pumping highly flammable liquids (DS 24117).
- Leave 115 mm (4.5 in) below the reservoir for removal; the mounting surface must carry 3.4 kg (7.5 lb) (DS 24117).
- For 230 VAC, hot goes to terminal 4 and the suppressor wire moves from terminal 5 to 4 (DS 24117).
Choosing Between Options
- TMD-5 covers 1-5 cc per cycle; for 0.2-1.0 cc use TM-1 (DS 24117; DS 35477).
- Replacing an obsolete TM-5: the TMD-5 has the same 1-5 cc piston-pump range; BDI also offers special SureFire II SFX71322-RK/-BK (DS 24117; TS020).
- 24 VDC supply: 32295 (27.7 min at 60 Hz) is the only DC model (DS 24117).
