Bijur Delimon Manual Lubricator

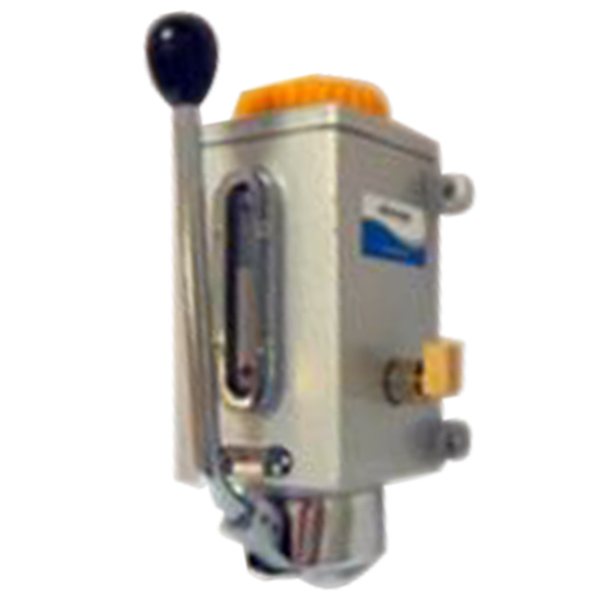

Bijur Delimon L6P Lubricator PDI Manual Hand Pump
Part Number / SKU: L6P | Manufacturer: Bijur Delimon | Availability: Made to Order - Lead Time: 20-30 business days
Overview
Bijur Delimon L6P (factory description: LUB L6P PDI MANUAL HAND PUMP). Bijur hand-operated lubricators, kits and service parts. Most models are one-shot piston pumps: work the handle and a spring pushes a measured oil shot through the line to Type F meter units.
Specifying, quoting, or replacing L6P
Add to cart at the price shown, or use the Request a Quote form: send the part number L6P, the quantity, and a photo of the nameplate or the old part, and we reply the same day. L. DeWitt McCarter is an authorized Bijur Delimon, Farval and LubeSite distributor in San Antonio, TX — (210) 494-1997.
Key Specifications
| Manufacturer part number | L6P |
| Brand | Bijur Delimon |
| Selling unit | Each (1 piece) |
What You'll Also Need
- Type F meter units, one per lube point (e.g. FJB junction or FSA straight types) (DS 35470)
- Spare inlet filter group: S109 (L5P, L5H, L18P), S178 (L2P), S130 (HAP-P/HIP-P) (005-B; DS 21967; DS 24797; DS 24375)
- Filler cap B9230C (L5P, L5H, L18P, HAP-P) (DS 21967; DS 24373; DS 21968; DS 24375)
- 5/32 in tube on L5P's 5/16-24 tapped outlet: compression bushing B1371 + sleeve B1061 (DS 21967)
Before You Order
- Factory description: PDI manual hand pump, for positive-displacement injector systems. The Type F meter-unit limits on this page do not apply.
- Handle side matters: L5P right D3174C / left D3173C; L18P right D3033C / left D3217C (DS 21967; DS 21968).
- Meter-unit limits: L2P 60, L5P and L18P 70 (HAP-P table runs to 70); total system flow (ø) must stay within the cc-per-shot table on the data sheet (DS 24797; DS 21967; DS 21968; DS 24375).
- Discharge pressure falls as shot size drops and the number of meter units rises (DS 21967; DS 24375).
- Inspect the 40 µm inlet filter every six months and replace the filter group annually (DS 21968; DS 24373).
- Start-up: fill the reservoir and operate the lubricator until oil flows freely at all bearings (DS 21968; DS 24373).
Choosing Between Options
- L2P: 1 or 2 cc fixed, 200 cc, compact machines. L5P: 1-5 cc adjustable, 475 cc, small/medium machines. L18P: 6-18 cc, 1 L, larger systems (DS 24797; DS 21967; DS 21968).
- L5H D3274C: pull tee-handle, fixed 5 cc. L5H-3 D3508C adds 3-outlet junction 22171 (DS 24373).
- HAP-P D3221C (push lever) or HIP-P D3204C (pull handle): 5-15 cc, 475 cc reservoir (DS 24375; 005-B).
- For automatic feed on the same Type F meter units: TM-1 (0.2-1.0 cc/cycle) or TMD-5 (1-5 cc/cycle) (DS 35477; DS 24117).
Product Documentation
Opens in your browser — use your browser's save option to download a copy.
Browse all Bijur Delimon products or request a quote for L6P — we reply the same day.
