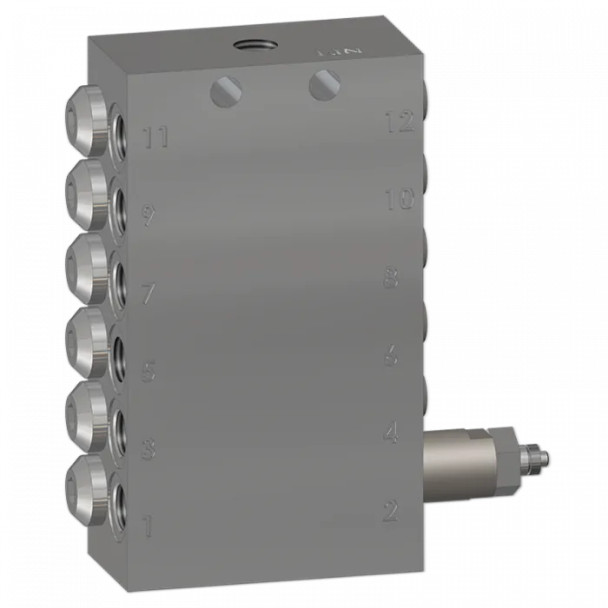

Bijur Delimon PVBM12-001 PVB Mobile Progressive Divider Valve, Twelve-Outlets, Cycle Pin, 0.20cc Per Outlet Per Cycle

Bijur Delimon PVB Mobile Divider Valve

Bijur Delimon PVBM12-001 PVB Mobile Progressive Divider Valve, Twelve-Outlets, Cycle Pin, 0.20cc Per Outlet Per Cycle

Part Number / SKU: PVBM12-001

Key Specifications

• Series: PVB Mobile
• Outlet Count: 12 outlets
• End Segment: 001 - with cycle pin
• Discharge Per Cycle Per Outlet: 0.20 cc (0.012 cu. in.)
• Pressure Range: 145 psi (10 bar) minimum to 5076 psi (350 bar) maximum
• Maximum Differential Pressure: 1015 psi (70 bar) between two opposite outlets
• Lubricant Compatibility: NLGI grade 000-2 grease; ISO VG 68 to 1500 oil at working temperature
• Operating Temperature: -13 deg F to 176 deg F (-25 deg C to 80 deg C)
• Material: Carbon steel with surface protection
• Surface Protection: Proprietary, 1000-hour salt spray
• Dimensional Length L: 105 mm
• Approx. Product Size: 5.0000 in W x 4.13 in H x 8.0000 in D

Customer-Facing Features

• Flexible design supports on-site outlet configuration using required fittings and closure plugs.
• Positive displacement discharge provides repeatable lubricant delivery.
• Cycle indicator pin provides visual confirmation of operation; optional cycle switch can provide electrical feedback to a controller.
• One switch can monitor the complete progressive divider valve system.
• Corrosion-resistant valve construction for mobile and industrial lubrication environments.
