Product Overview
Bijur Delimon Filters & Strainers

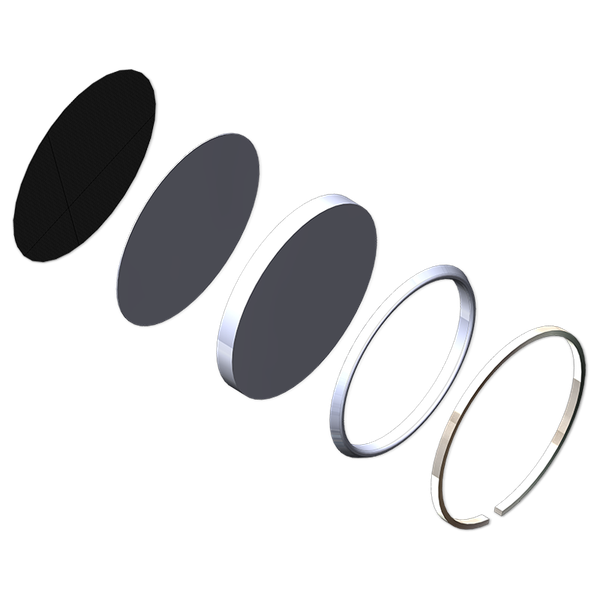

Bijur Delimon S109 Group Service Filter Lubricator BCY + G
Part Number / SKU: S109 | Manufacturer: Bijur Delimon | Availability: In Stock at Factory - Ships in 3-5 Business Days
Overview
Bijur Delimon S109 (factory description: GRP SERV FILTER LUB BCY+G). Filters, strainers, replacement elements and filter service groups for Bijur Delimon lubricators and oil lines: inline pressure filters, suction and fill strainers, return-line filters and air-line filters.
Specifying, quoting, or replacing S109
Add to cart at the price shown, or use the Request a Quote form: send the part number S109, the quantity, and a photo of the nameplate or the old part, and we reply the same day. L. DeWitt McCarter is an authorized Bijur Delimon, Farval and LubeSite distributor in San Antonio, TX — (210) 494-1997.
Key Specifications
| Manufacturer part number | S109 |
| Brand | Bijur Delimon |
| Selling unit | Each (1 piece) |
| Service group | Filter group for Type TM5, P, RB, M, L5P and L5H pumps (also L18P) |
What You'll Also Need
- Spare elements for 1/8 NPTF inline filters: 43254 (for 43252), B6527 (19850), B6530 (19851), 19325 (19329), B6890 (19848), B6889 (19849) (B151 p.72)
- Lubricator inlet filter groups: S109 (L5P, L5H, L18P, TM5), S178 (TM-1, L2P), S130 (HAP-P/HIP-P), 26361 (TMD-5) (005-B; DS 24117)
- Return-line filter 70808 (G1/2, 100 µm) takes element AK161E (DS 36751)
Before You Order
- Order an element by its housing P/N: 1 in and 3 in housings take different elements even at the same micron rating (B151 p.72).
- Pressure limits: 1/8 NPTF inline filters 500 psi; D3489/D3527/D3467 300 psi; LS0 strainers 5000 psi; stainless 26487 6000 psi (B151 p.72-73).
- LS0 strainer screen by oil: 150 µm for oil up to 2000 SSU; 500 µm for oil over 2000 SSU and all grease (B151 p.72).
- Return filter 70808 is designed for gravity return and must be installed vertically (DS 36751).
- Lubricator inlet filters: inspect every six months, replace the filter group annually (DS 21968; DS 24373).
Choosing Between Options
- Oil lines with meter units: a 25 µm filter near the lubricator, 19850 (1 in) or 19848 (3 in) (DS 24117).
- Old Bijur filters B7239, B7243, B7254 and B7257 are replaced by 19850, 19851, 19848 and 19849 (B151 p.72).
Product Documentation
Opens in your browser — use your browser's save option to download a copy.
Browse all Bijur Delimon products or request a quote for S109 — we reply the same day.
