Farval Barrel & Drum Pump

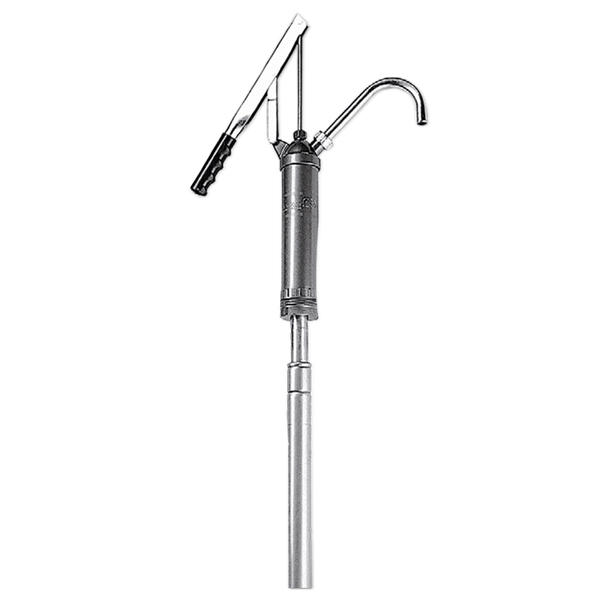

Farval F1243 Hand Pump W Viton Seals 16-55G
Part Number / SKU: F1243 | Manufacturer: Farval | Availability: Made to Order - Lead Time: 20-30 business days
Overview
Farval F1243 (factory description: HAND PUMP W VITON SEALS 16-55G). Farval air-operated drum and barrel pumps that move oil or grease straight from a 35 lb pail, 120 lb keg, 400 lb drum or tote to reels, guns and central lube systems, plus packages and parts.
Specifying, quoting, or replacing F1243
Add to cart at the price shown, or use the Request a Quote form: send the part number F1243, the quantity, and a photo of the nameplate or the old part, and we reply the same day. L. DeWitt McCarter is an authorized Bijur Delimon, Farval and LubeSite distributor in San Antonio, TX — (210) 494-1997.
Key Specifications
| Manufacturer part number | F1243 |
| Brand | Farval |
| Selling unit | Each (1 piece) |
| Type | Hand transfer pump with Viton seals |
| Fluids | Alcohols, degreasers, solvents, oils, anti-freeze |
| Output | 0.45 L per stroke |
| Spout | Curved steel spout with garden-hose threads |
What You'll Also Need
- Air preparation ahead of any air pump: filter/regulator combos F956 (1/4"), F957 (3/8"), F958 (1/2") or FRL F6282/F984/F985 [Brochure 33136 p.18].
- Oil pumps only - hook-up kits: F904 (PM2), F906 (PM4), F916 (PM35), F914 (PM45/PM60) - air hose, quick coupler/nipple and 5 ft fluid hose [Brochure 33136 p.8, p.16].
- Grease pumps on open-top drums need a cover (F1934 35 lb, F1936 120 lb, F1938 400 lb) and a follower plate (F962, F964, F966) [DuaLine DL29 p.13].
- Relief valves (36" return tube): F609007 900 psi for PM2/PM4, PM45, PM60, PM35 5:1; F609008 1450 psi for PM35 8:1, PM45 10:1, PM60 12:1 oil pumps [Brochure 33136 p.9].
Before You Order
- Match the pump tube length to the container: 35 lb, 120 lb and 400 lb versions of the same pump are different part numbers and are not interchangeable.
- Bung-mount pumps need a 2" bung opening; the listed grease pumps handle grease up to and including NLGI 2 [Brochure 33136 p.10-15].
- Output pressure = air pressure x ratio; check the rated max air pressure for the model (100 to 200 psi depending on model) [Brochure 33136].
- Install an air shut-off valve: if air is left on and the outlet circuit leaks, the pump restarts and can empty the container [DS 35993 p.2].
Choosing Between Options
- Oil transfer: PM2 1:1 for short runs/high volume; PM2 3:1 or PM4 5:1 for hose reels and meters; PM35/PM45/PM60 for heavy-duty and multi-outlet systems [Brochure 33136 p.1-8].
- Grease: PM3 55:1 for portable/stationary single-reel service; PM35 60:1 for up to 2 simultaneous outlets; PM45/PM60 for large multi-outlet systems [Brochure 33136 p.10-14].
- For injector or DuaLine central stations use 9035/9120/9400 - the PM3 55:1 with return tube to the drum bottom [DS 35993 p.4; DuaLine DL29 p.12].
