Product Overview
Farval Barrel & Drum Pump

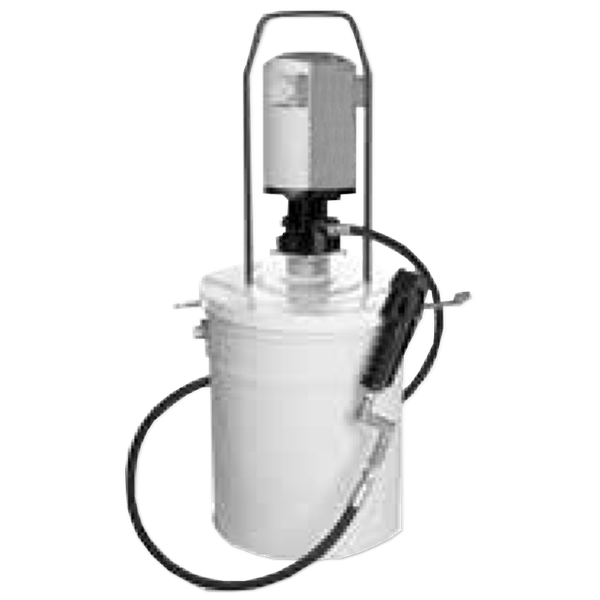

Farval F402201 Pump Kit PM35 35 lb
Part Number / SKU: F402201 | Manufacturer: Farval | Availability: Made to Order - Lead Time: 20-30 business days
Overview
Farval F402201 (factory description: PUMP KIT PM35 35LB). Replacement part, kit or mounting accessory for a Farval drum or barrel pump installation; it is not a complete pump.
Specifying, quoting, or replacing F402201
Add to cart at the price shown, or use the Request a Quote form: send the part number F402201, the quantity, and a photo of the nameplate or the old part, and we reply the same day. L. DeWitt McCarter is an authorized Bijur Delimon, Farval and LubeSite distributor in San Antonio, TX — (210) 494-1997.
Key Specifications
| Manufacturer part number | F402201 |
| Brand | Farval |
| Selling unit | Each (1 piece) |
| Package contents | PM35 60:1 cart package, 35 lb pail: F530631 + F1934 cover + F962 follower + 15 ft F873000 hose + F413077 handle + F957 FR; carry handle F2020, no cart |
| Pump | PM35 60:1 heavy-duty high-pressure grease pump |
| Air pressure | 20-145 psi (1.5-10 bar) |
| Max output pressure | 8,700 psi (600 bar) at 140 psi air |
| Max delivery | 1.1 lb/min (36 cu in, 540 cc/min) |
| Air inlet / outlet | 3/8" NPT(F) / 3/8" NPT(F) |
| Air motor | 3.15" x 3.15" stroke |
| Grease | Up to and including NLGI 2 |
Before You Order
- Rated for up to 2 simultaneous-use outlets, even if the system has more outlets [Brochure 33136 p.11].
- Bung adapter is height-adjustable 2" NPTM; removable intake screen and built-in air inlet filter [Brochure 33136 p.11].
- Match the pump model and ratio (PM2, PM3, PM4, PM35, PM45, PM60, 9000 series) and the container size on the pump tag before ordering tubes, rods, covers or bung adapters.
- PM3 bung adapters differ by series: F2028 for F300/F302/F304, F366002 for 9035, F360002 for 9120/9400 [DS 35993 p.5].
