Product Overview
Farval Hose Reel

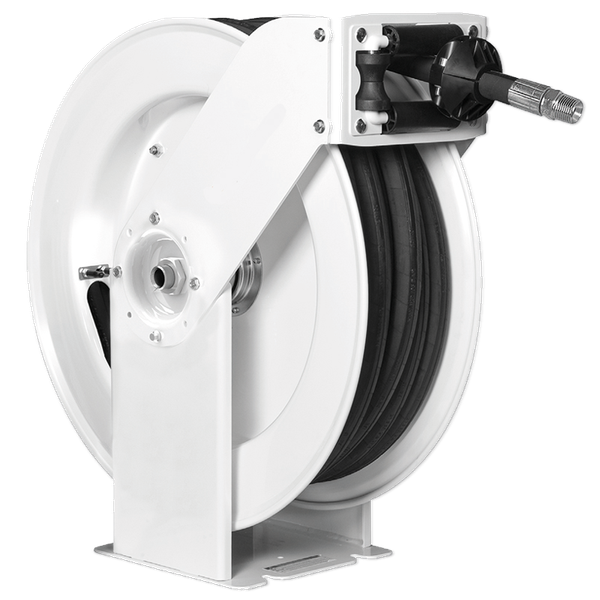

Farval F505221 Hose Reel with Hose 50'LX3/4 ID
Part Number / SKU: F505221 | Manufacturer: Farval | Availability: Made to Order - Lead Time: 30-40 business days
Overview
Farval F505221 (factory description: HOSE REEL W/ HOSE 50'LX3/4"ID). Mounting stand or frame for Farval hose reels.
Specifying, quoting, or replacing F505221
Add to cart at the price shown, or use the Request a Quote form: send the part number F505221, the quantity, and a photo of the nameplate or the old part, and we reply the same day. L. DeWitt McCarter is an authorized Bijur Delimon, Farval and LubeSite distributor in San Antonio, TX — (210) 494-1997.
Key Specifications
| Manufacturer part number | F505221 |
| Brand | Farval |
| Selling unit | Each (1 piece) |
| Reel series | 505 HD double pedestal |
| Service | Lubricants |
| Hose | 50 ft x 3/4" ID |
| Pressure rating | 1250 psi |
| Construction | Heavy-gauge welded plate steel, hardened shaft, permanently lubricated bearings |
| Guide arms | Adjustable to 3 positions: wall, ceiling, floor, pit or truck mounting |
| Spring | Enclosed floating spring canister, replaceable |
| Latch | Non-sparking, with audible lock |
| Series | Heavy-duty 505 double pedestal reel; spool on 2 sealed ball bearings |
| Dimensions | approx. 23-3/8" x 22-1/16" x 8-7/8" (594 x 560 x 226 mm); spool 21-3/4" (551 mm) |
| Hose | 50 ft x 3/4" ID, 1250 psi (lubricants) |
Before You Order
- Reels include the inlet swivel; models with hose include a hose stop [Brochure 33136 p.23].
- Inlet connecting hose not included [Brochure 33136 p.23].
- Match F505221 to the part number on the old part, the unit nameplate or the unit parts list before ordering.
Product Documentation
Opens in your browser — use your browser's save option to download a copy.
Browse all Farval products or request a quote for F505221 — we reply the same day.
