Product Overview
LubeSite Automatic Grease Feeder
LubeSite 360 6 oz Grease Feeder
Part Number / SKU: 360 | Manufacturer: LubeSite | Availability: In Stock at Factory - Ships in 3-5 Business Days
Overview
LubeSite 360 (factory description: 6 OZ GREASE FEEDER). LubeSite refillable single-point grease feeders: a spring-loaded piston pushes grease through a tapered metering rod into one bearing, feeding only while the bearing turns.
Specifying, quoting, or replacing 360
Add to cart at the price shown, or use the Request a Quote form: send the part number 360, the quantity, and a photo of the nameplate or the old part, and we reply the same day. L. DeWitt McCarter is an authorized Bijur Delimon, Farval and LubeSite distributor in San Antonio, TX — (210) 494-1997.
Key Specifications
| Manufacturer part number | 360 |
| Brand | LubeSite |
| Selling unit | Each (1 piece) |
| Series | LubeSite 300 Series - vibration, impact, high torque |
| Reservoir capacity | 6 oz (170.1 g) |
| Base / dome | Lightweight anodized aluminum / Polycarbonate |
| Size (dia x height) | 3" (76.2 mm) x 6" (152.4 mm) |
| Coupler thread to bearing | 1/8" NPT (standard) |
| Operating temperature | -10 F to 250 F (-23 C to 121 C) |
| Replacement springs | 360-7 light blue, 360-8 medium silver, 360-9 heavy red, 360-15 extra heavy orange |
| Springs supplied | Medium (silver) installed; light (blue) and heavy (red) in the box |
| Dome | Polycarbonate |
| Output pressure | 1-5 psi - will not blow bearing seals |
| Grease | NLGI 0-4 non-separating |
| Operation | Venturi action: feeds only while the bearing is in motion; stops when it stops |
| Moving parts | 2: spring, and piston with metering rod and seal ring |
| Bearing connection | 1/8" NPT base coupler installed on standard part numbers |
| Power | None - no battery or gas; any mounting position |
| Refill | Refillable in place through the side grease fitting |
What You'll Also Need
- Adapter if the bearing hole is not 1/8" NPT: 20-1 straight 1/4"-28, U104B1 bushing 1/4" NPT, U1103A 45 deg, U1104AS or 27718 90 deg [L713 p.26].
- Extension kit 37704 for remote mounting up to 6 ft (200/300/500 Series); an extra-heavy orange spring may be needed [L713 p.8, p.22].
- LubeLine refill kit: 10 ft of tube to refill a hard-to-reach unit [L713 p.14].
Before You Order

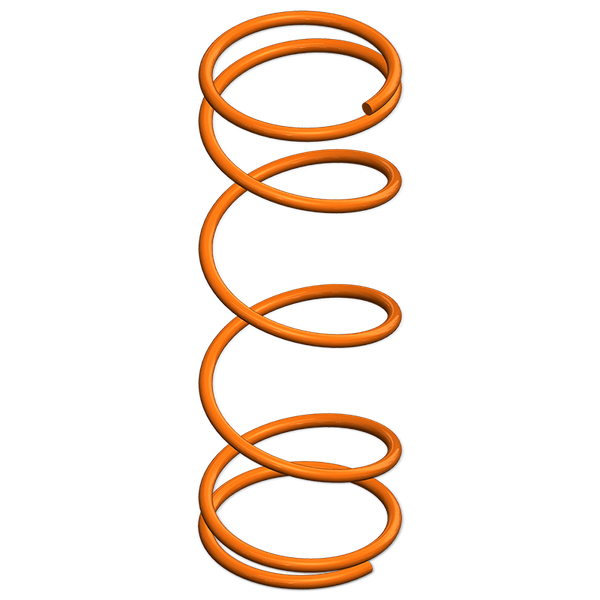

- Optional extra-heavy orange spring for extensions or flushing: 202-15 (1 oz), 205-15 (2 oz), 360-15 (6 oz) [L713 p.9].
- Size by shaft and speed: shaft up to 1-1/2" = 1 oz under 2500 rpm, 2 oz over; larger shafts use 2 oz or 6 oz. Do not oversize [L713 p.9].
- Spring by bearing temperature and NLGI grade; medium spring is right for most (e.g. 60-80 F with NLGI 2) [L713 p.8-9].
- Tighten hand-tight only. Do not overfill - over-pressure can separate the top from the base [DS 35700 p.2].
- Clean the dome with mild detergent only, never solvents; full clean about once a year [L713 p.7].
Choosing Between Options
- 200 Series (clear polycarbonate base): static housings only. 300 Series (aluminum base): vibration, impact, high torque [L713 p.8].
- 500 Series (nickel-chrome base, chemical-resistant Viton): corrosive, chemical and food plants. 704: ambient up to 450 F [L713 p.8].
- For a BSPT thread order the same number with BSP suffix (e.g. 205 BSP); 704 is 1/8" NPT only [DS 35700 p.4; DS 35704].
Product Documentation
Opens in your browser — use your browser's save option to download a copy.
Browse all LubeSite products or request a quote for 360 — we reply the same day.
