Product Overview
LubeSite Oiler / Accessory

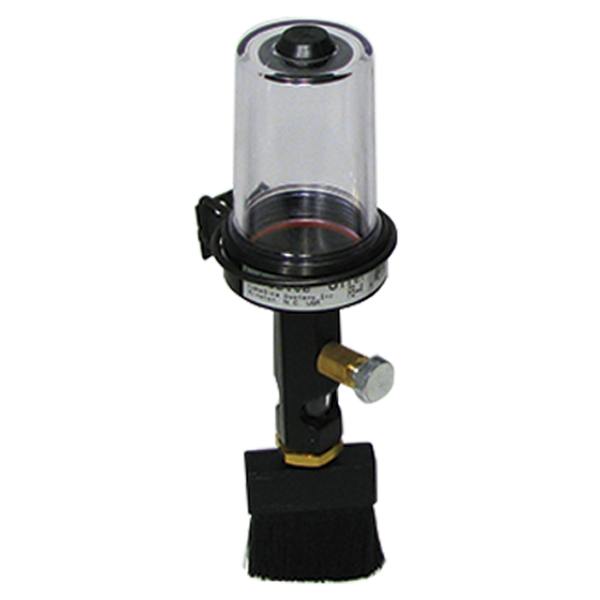

LubeSite FB-8 8 oz Chain Oiler
Part Number / SKU: FB-8 | Manufacturer: LubeSite | Availability: In Stock at Factory - Ships in 3-5 Business Days
Overview
LubeSite FB-8 (factory description: 8 OZ. CHAIN OILER). LubeSite single-point oilers and oiler accessories: drip and brush chain oilers, cam-lock flow sights, sight plugs, level sights, brushes, brackets and small adapter fittings.
Specifying, quoting, or replacing FB-8
Add to cart at the price shown, or use the Request a Quote form: send the part number FB-8, the quantity, and a photo of the nameplate or the old part, and we reply the same day. L. DeWitt McCarter is an authorized Bijur Delimon, Farval and LubeSite distributor in San Antonio, TX — (210) 494-1997.
Key Specifications
| Manufacturer part number | FB-8 |
| Brand | LubeSite |
| Selling unit | Each (1 piece) |
| Type | Chain oiler, flat brush |
| Reservoir capacity | 8 oz (240 mL) |
| Size | 2-1/4" dia (57 mm) x 11-3/8" high (288.9 mm) |
| Valve | Needle valve |
| Thread | 1/8" NPT |
| Replacement brush / bracket | 803-11 flat; bracket 803-7 included |
| Dome / base | Polycarbonate dome / lightweight anodized aluminum base |
| Max temperature | 200 F (93 C) polycarbonate dome |
| Refill | Poke-through cap for a standard oil can; hole closes after |
| Mounting | Bracket 803-7 included; mount directly in front of the drive sprocket |
| Capacity | 8 oz (240 mL) |
What You'll Also Need
- Mounting bracket 803-7 fits any LubeSite oiler (included with chain oilers) [L713 p.18].
- Electrical shut-off valve 37654 (110-120 V) works on all LubeSite oilers [L713 p.22].
Before You Order
- Uses: machine tools, oil-lubricated bearings, gear boxes, motors, drives and chains [L713 p.15].
- Replacement brushes: 803-10 round, 803-11 flat [L713 p.19].
- LubeSite oiler domes are polycarbonate rated 200 F (93 C) max - lower than the 250 F grease-feeder rating [L713 p.15].
Choosing Between Options
- Drip oiler (D-): adjustable drip, visible in the flow sight. Chain oiler (FB-/RB-): brush applicator for chains. Gravity oiler (G-): constant flow, no glass [L713 p.16-18].
- CAM versions use the cam-lock valve flow sight for precise metering; the needle version is standard [L713 p.16].
