Bijur Delimon
Bijur Delimon SFX12MBSNNNDXC SureFire II Automatic Lubricator, 12 L, PDI, 100/115 VAC, Premium Controller
- SKU:
- SFX12MBSNNNDXC
- MPN:
- SFX12MBSNNNDXC
- Condition:
- New
Description
Bijur Delimon SureFire II Automatic Lubricator
Bijur Delimon SFX12MBSNNNDXC SureFire II Automatic Lubricator, 12 L, PDI, 100/115 VAC, Premium Controller
Part Number / SKU: SFX12MBSNNNDXC - 12 L | PDI - Single Line Injector | 100/115 VAC, 50/60 Hz, Single Phase | Premium controller/monitor

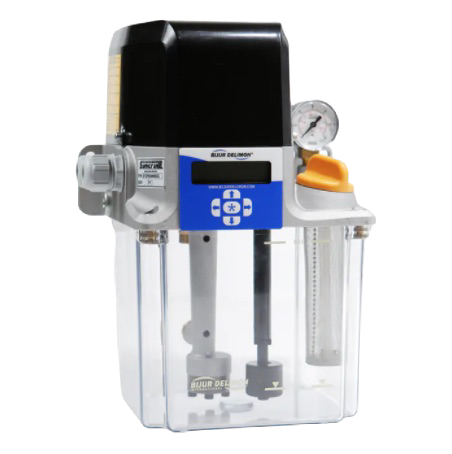

The Bijur Delimon SFX12MBSNNNDXC SureFire II is a compact, self-contained electric motor-driven gear pump for centralized automatic lubrication on machine tools and production machinery. It is a strong fit for maintenance teams replacing an existing lubricator, standardizing a lubrication system, or quoting a known Bijur Delimon part number.
Fit & Application Check
This PDI configuration is intended for positive displacement injector systems where the pump pressurizes the main line and injectors discharge measured lubricant during each cycle.
- Confirm system type before ordering: PDI injector system or SLR resistance system.
- Match voltage, reservoir capacity, controls, fill method, monitoring options, and electrical connector style to the existing machine.
- Use the part number, nameplate photo, or current pump configuration when requesting price and availability.
Datasheet-Enriched Buyer Notes
- PDI operation: the pump pressurizes the network so positive displacement injectors discharge measured lubricant; the quick dump valve relieves line pressure back to reservoir after the cycle.
- Premium controller/monitor: microprocessor-based control for lubrication cycles, monitoring inputs, fault reporting, machine feedback outputs, and advanced program modes.
- Oil models use a removable 40 mesh reservoir fill screen; inspect and clean the screen during routine service.
- SureFire II PDI and SLR systems can serve single points or grouped lubrication points in production machinery and machine-tool applications.
- Useful for replacement projects where downtime, incorrect fit, and unclear lead times can slow maintenance work.
Service & Replacement Details
Common service parts to verify: Metal reservoir kit 71135, gasket included; Filler cap kit 71121; PDI pressure switch kit 71119; PDI pressure gauge 71129; PDI relief valve kit 71132; Premium controller kit 71123-P
PDF sources used: 36409 SureFire II flyer; 36410 PDI/SLR datasheet; 36412 single-phase operator manual; 36979 machine-tool flyer; 36929 machine-tool lathe flyer
Before You Order
Need help confirming the correct SureFire II lubricator? Send the existing part number, voltage, reservoir size, system type, and a photo of the pump nameplate. We can help match the configuration and confirm price, availability, and suitable replacement options.
Bijur Delimon SFX12MBSNNNDXC SureFire II 12 L automatic lubricator for PDI - Single Line Injector applications; compare by reservoir capacity, voltage, controller type, lubricant compatibility, pressure rating, and mounting envelope.
Additional Information
Brand: |
Bijur Delimon |
Manufacturer Part Number: |
SFX12MBSNNNDXC |
Product Series: |
SureFire II |
Product Type: |
Automatic lubricator |
Distribution System: |
PDI - Single Line Injector |
Reservoir Capacity: |
12 L |
Reservoir Material: |
Painted Steel |
Lubricant Type: |
Oil, 20-1500 cSt |
Max Output Volume: |
250 cc/min @ 60 Hz / 210 cc/min @ 50 Hz |
Max Output Pressure: |
450 psi (31 bar) |
Pressure Switch Setting: |
Closes at 290 psi (20 bar) |
Level Monitoring: |
Standard N/O float switch |
Pressure Monitoring: |
N/O pressure switch + pressure gauge |
Supply Voltage: |
100/115 VAC, 50/60 Hz, Single Phase |
Integrated Controls: |
Premium controller/monitor |
Electrical Connection: |
2 x cable glands |
Output Connection: |
G 1/4 BSPP (2 outlets, one each side) |
Return Line Connection: |
G 1/4 BSPP |
Minimum Feed Line O.D.: |
6 mm |
IP Rating: |
IP-54 |
Certifications: |
CE Approved |
Approx. Dimensions: |
14.57 in W x 11.61 in H x 13.07 in D |
Approx. Weight: |
32 lb |
Customer Search Summary: |
Bijur Delimon SFX12MBSNNNDXC SureFire II 12 L automatic lubricator for PDI - Single Line Injector applications; compare by reservoir capacity, voltage, controller type, lubricant compatibility, pressure rating, and mounting envelope. |
Datasheet Source: |
Bijur Delimon SureFire II datasheet and operation manual supplied with import request |
Method of Fill: |
Standard filler cap; oil versions use an integrated strainer |
Connector Option From SFX Code: |
2 x cable glands |
Reservoir Service Kit: |
Metal reservoir kit 71135, gasket included |
Motor Power Note: |
100/115 VAC single-phase models are listed at 1.0 amp in the SureFire II ordering data. |
Controller Buyer Note: |
Premium controller/monitor: microprocessor-based control for lubrication cycles, monitoring inputs, fault reporting, machine feedback outputs, and advanced program modes. |
Common Service Parts: |
Metal reservoir kit 71135, gasket included; Filler cap kit 71121; PDI pressure switch kit 71119; PDI pressure gauge 71129; PDI relief valve kit 71132; Premium controller kit 71123-P |
PDF References: |
36409 SureFire II flyer; 36410 PDI/SLR datasheet; 36412 single-phase operator manual; 36979 machine-tool flyer; 36929 machine-tool lathe flyer |
