Bijur Delimon
Bijur Delimon SFX30MASNNNAXB SureFire II Automatic Lubricator, 30 L, SLR, 24 VDC, Terminal Block
- SKU:
- SFX30MASNNNAXB
- MPN:
- SFX30MASNNNAXB
- Condition:
- New
Description

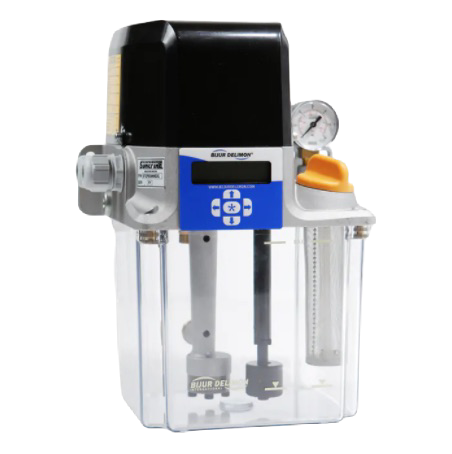

Bijur Delimon SureFire II Automatic Lubricator
Bijur Delimon SFX30MASNNNAXB SureFire II Automatic Lubricator, 30 L, SLR, 24 VDC, Terminal Block
Part Number / SKU: SFX30MASNNNAXB - 30 L | SLR - Single Line Resistance | 24 VDC | Terminal block + momentary run switch + motor ON LED
The Bijur Delimon SFX30MASNNNAXB SureFire II is a compact, self-contained electric motor-driven gear pump for centralized automatic lubrication on machine tools and production machinery. It is a strong fit for maintenance teams replacing an existing lubricator, standardizing a lubrication system, or quoting a known Bijur Delimon part number.
Fit & Application Check
This SLR configuration is intended for single-line resistance systems where oil is proportioned through resistance fittings across the lubrication network.
- Confirm system type before ordering: PDI injector system or SLR resistance system.
- Match voltage, reservoir capacity, controls, fill method, monitoring options, and electrical connector style to the existing machine.
- Use the part number, nameplate photo, or current pump configuration when requesting price and availability.
Datasheet-Enriched Buyer Notes
- SLR operation: the pump supplies oil through resistance fittings or fitting groups; line pressure returns near zero after shutoff through the quick dump valve.
- Terminal block with momentary run switch and motor ON LED: useful where simple local run indication and terminal wiring are preferred.
- Oil models use a removable 40 mesh reservoir fill screen; inspect and clean the screen during routine service.
- SureFire II PDI and SLR systems can serve single points or grouped lubrication points in production machinery and machine-tool applications.
- Useful for replacement projects where downtime, incorrect fit, and unclear lead times can slow maintenance work.
Service & Replacement Details
Common service parts to verify: Metal reservoir kit 71079, gasket included; Filler cap kit 71121; SLR pressure switch kit 71120; SLR pressure gauge 71130; SLR relief valve kit 71133; Terminal strip kit 71122
PDF sources used: 36409 SureFire II flyer; 36410 PDI/SLR datasheet; 36412 single-phase operator manual; 36979 machine-tool flyer; 36929 machine-tool lathe flyer
Before You Order
Need help confirming the correct SureFire II lubricator? Send the existing part number, voltage, reservoir size, system type, and a photo of the pump nameplate. We can help match the configuration and confirm price, availability, and suitable replacement options.
Bijur Delimon SFX30MASNNNAXB SureFire II 30 L automatic lubricator for SLR - Single Line Resistance applications; compare by reservoir capacity, voltage, controller type, lubricant compatibility, pressure rating, and mounting envelope.
Additional Information
Brand: |
Bijur Delimon |
Manufacturer Part Number: |
SFX30MASNNNAXB |
Product Series: |
SureFire II |
Product Type: |
Automatic lubricator |
Distribution System: |
SLR - Single Line Resistance |
Reservoir Capacity: |
30 L |
Reservoir Material: |
Painted Steel |
Lubricant Type: |
Oil, 20-1500 cSt |
Max Output Volume: |
250 cc/min @ 60 Hz / 210 cc/min @ 50 Hz |
Max Output Pressure: |
75 psi (5 bar) |
Pressure Switch Setting: |
Closes at 20 psi (1.4 bar) |
Level Monitoring: |
Standard N/O float switch |
Pressure Monitoring: |
N/O pressure switch + pressure gauge |
Supply Voltage: |
24 VDC |
Integrated Controls: |
Terminal block + momentary run switch + motor ON LED |
Electrical Connection: |
2 x cable glands |
Output Connection: |
G 1/4 BSPP (2 outlets, one each side) |
Return Line Connection: |
G 1/4 BSPP |
Minimum Feed Line O.D.: |
6 mm |
IP Rating: |
IP-54 |
Certifications: |
CE Approved |
Customer Search Summary: |
Bijur Delimon SFX30MASNNNAXB SureFire II 30 L automatic lubricator for SLR - Single Line Resistance applications; compare by reservoir capacity, voltage, controller type, lubricant compatibility, pressure rating, and mounting envelope. |
Datasheet Source: |
Bijur Delimon SureFire II datasheet and operation manual supplied with import request |
Method of Fill: |
Standard filler cap; oil versions use an integrated strainer |
Connector Option From SFX Code: |
2 x cable glands |
Reservoir Service Kit: |
Metal reservoir kit 71079, gasket included |
Motor Power Note: |
24 VDC models are listed at 2.4 amps in the SureFire II ordering data. |
Controller Buyer Note: |
Terminal block with momentary run switch and motor ON LED: useful where simple local run indication and terminal wiring are preferred. |
Common Service Parts: |
Metal reservoir kit 71079, gasket included; Filler cap kit 71121; SLR pressure switch kit 71120; SLR pressure gauge 71130; SLR relief valve kit 71133; Terminal strip kit 71122 |
PDF References: |
36409 SureFire II flyer; 36410 PDI/SLR datasheet; 36412 single-phase operator manual; 36979 machine-tool flyer; 36929 machine-tool lathe flyer |
