Bijur Delimon SureFire II Automatic Lubricator

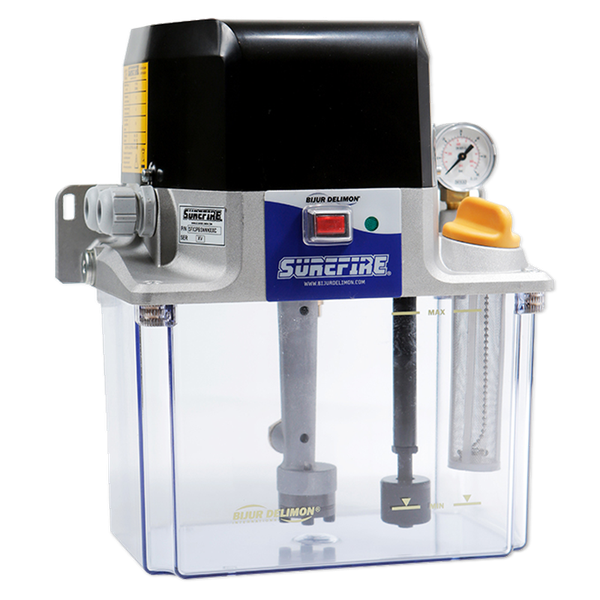

Bijur Delimon SFX3PBGEXNXDE SureFire II Automatic Lubricator, 3L, PDI, Fluid Grease, 200/230 VAC, Terminal Block
Part Number / SKU: SFX3PBGEXNXDE | Manufacturer: Bijur Delimon | Availability: Made to Order - Lead Time: 20-30 business days
Overview
Bijur Delimon SFX3PBGEXNXDE (factory description: SFX3L PDI 3PH GRS LS-M12-NO). SureFire II is a self-contained electric gear-pump lubricator. PDI versions feed injectors with oil or fluid grease; SLR versions feed resistance meter units with oil; each serves up to 100 lube points.
Specifying, quoting, or replacing SFX3PBGEXNXDE
Add to cart at the price shown, or use the Request a Quote form: send the part number SFX3PBGEXNXDE, the quantity, and a photo of the nameplate or the old part, and we reply the same day. L. DeWitt McCarter is an authorized Bijur Delimon, Farval and LubeSite distributor in San Antonio, TX — (210) 494-1997.
Key Specifications
| Manufacturer part number | SFX3PBGEXNXDE |
| Brand | Bijur Delimon |
| Selling unit | Each (1 piece) |
| Motor | Three phase, direct connect to motor (no integral controller; cycle from customer starter/PLC) |
| Reservoir | 3 L, Plastic - Luran (blue tint) |
| Distribution system | PDI, 450 psi (31 bar) relief valve |
| Lubricant | Fluid grease NLGI 000-00 (40,000 cSt max) |
| Level monitoring | Standard M12 type: 1x N/O capacitive sensor (grease) |
| Pressure monitoring | None (no pressure switch on 3-phase models) |
| Method of fill | Standard filler cap (oil version has integrated strainer) |
| Flow regulation | None |
| Voltage / output | 230/480 VAC 50/60 Hz three phase, 0.5 A - 500 cc/min @ 60 Hz (416 @ 50 Hz) |
| Motor duty | S1 continuous duty |
| Mounting | Upright only; bolt through top-plate holes with M6 bolts |
| External pressure switch (option) | End-of-line PDI switch 26772-2, 225 psi / 15.5 bar |
| Service kits for this build | motor 71168-3; reservoir 71115; gear pump 71167 (500 cc); relief valve 71132; dump valve 71131 |
| Motor | 230/480 VAC 50/60 Hz three phase, 0.5 A, S1 continuous duty |
| Return connection | G 3/8 BSPP, omitted when a flow or pressure bypass is fitted (3 L & 6 L) |
| Pump type | Self-contained electric motor-driven gear pump |
| Lube points served | Up to 100 (PDI injectors or SLR resistance fittings) |
| Outlets | 2x G 1/4 BSPP female, one each side of top plate; 2 plugs supplied for the unused side |
| Main feed line | 6 mm O.D. minimum recommended |
| Operating temperature | 40 °F to 105 °F (5 °C to 40 °C) |
| Oil fill screen | 40 mesh, removable (oil versions only) |
What You'll Also Need
- PDI builds: ZEM injectors (DS 35135), 0.01-1.5 cc per outlet; pump must reach 220 psi (15 bar) at the injector, 300 psi (21 bar) recommended.
- SLR builds: meter units (resistance fittings) - offered in 8 resistance levels for flow ratios up to 1:128 (FL 36979).
- Tubing: 6 mm O.D. nylon main line; 4 mm O.D. nylon from injectors or meter units to the lube points (FL 36979).
- Pump outlet fitting AR397 (6 mm tube x 1/4 BSPP) with copper washer 35010 (Catalog B151 p.83-84).
- Optional end-of-line pressure switch: PDI 26772-2 (225 psi); SLR single-phase 26641-2 (55 psi); SLR 3-phase 27444-1 + DIN connector MCC2510A (DS 36410; DS 36701).
Before You Order
- Grease models have no filter screen: fill only with fresh, clean NLGI 000-00 grease of 40,000 cSt max (Manual 36412 p.48). Contact BDI for soft-grease applications (DS 36410).
- No integral controller and no pressure switch: cycle the motor from your starter/PLC and add an end-of-line switch (26772-2 PDI; 27444-1 + MCC2510A SLR) (DS 36701).
- Dual-voltage motor: link U/V/W terminals for 220-240 or 255-280 VAC (low) or 380-420 / 440-480 VAC (high) per the diagram (QS 36711 p.4).
- Mount upright only, at the lowest point of the lube network, so trapped air can migrate to line ends; trapped air can stop PDI injectors working (Manual 36412 p.3).
- AC single-phase motors are S3 20 %: max 2 min 59 s on per cycle and off time at least 4x on time. 24 VDC and 3-phase motors are S1 continuous (Manual 36412 p.5; QS 36711).
- Fluid grease (NLGI 000-00, max 40,000 cSt) is PDI only; SLR builds are oil only (DS 36410 p.4).
Choosing Between Options
- PDI (code B) runs ZEM injectors with oil or fluid grease at 450 psi (31 bar); SLR (code A) runs meter units with oil at 75 psi (1-phase) or 130 psi (3-phase) (DS 36410; DS 36701).
- Controls: terminal block (X/A) for PLC control; Timer (B) monitors level only; Lite (C) adds pressure- or cycle-switch monitoring; Premium (D) adds air pressure, oil streak, pre-lube, event (DS 36410 ordering grid; Manual 36412).
- Replacing a TM-5: special SureFire II SFX71322-RK (110/220 VAC) or SFX71322-BK (24 VDC) delivers a fixed 2.5 cc per cycle to existing meter units (TS020).
- Replacing AA/AB mechanical pumps: SureFire II package 71800-[voltage][size][material]J with one ZEM39 1.5 cc injector feeding the existing meter units (TS015).
