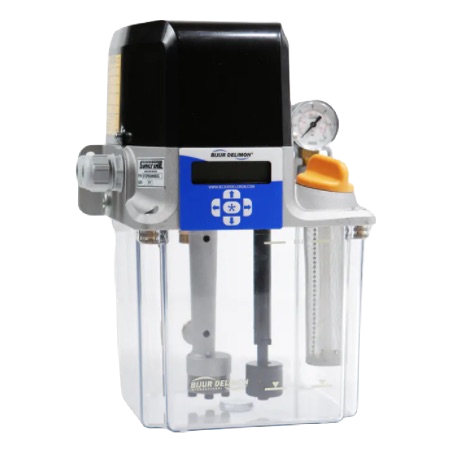

Bijur Delimon SFX3PCSNNNDXB SureFire II Automatic Lubricator, 3L, PDI, 24 VDC, Premium Controller

Bijur Delimon

(No reviews yet) Write a Review
MSRP: $1,887.27
$1,718.75
(You save $168.52 )
Bijur Delimon SFX3PCSNNNDXB SureFire II Automatic Lubricator, 3L, PDI, 24 VDC, Premium Controller
SKU:
SFX3PCSNNNDXB
Condition:
New
Availability:
Made to Order - Lead Time: 20-30 business days
Shipping:
Calculated at Checkout
Product Series:
SureFire II
Distribution System:
PDI - Single Line Injector
Reservoir Capacity:
3 L
Supply Voltage:
24 VDC
Integrated Controls:
Premium controller/monitor
Adding to cart… The item has been added
Request a Quote We reply by email with price, lead time and freight.

Lead times & ordering

  • This item: Made to Order - Lead Time: 20-30 business days
  • Stocked items typically ship in 3–5 business days, direct from the manufacturer. Ship dates are confirmed on your quote.
  • Purchase orders accepted — net terms on approval. Credit card and wire also welcome.

Product Overview

Bijur Delimon SureFire II Automatic Lubricator

Bijur Delimon SFX3PCSNNNDXB SureFire II Automatic Lubricator, 3L, PDI, 24 VDC, Premium Controller

Part Number / SKU: SFX3PCSNNNDXB  |  Manufacturer: Bijur Delimon  |  Availability: Made to Order - Lead Time: 20-30 business days

Overview

Bijur Delimon SFX3PCSNNNDXB (factory description: LUB SFX3L PROG 24V OIL CNTL). SureFire II is a self-contained electric gear-pump lubricator. PDI versions feed injectors with oil or fluid grease; SLR versions feed resistance meter units with oil; each serves up to 100 lube points.

Specifying, quoting, or replacing SFX3PCSNNNDXB

Add to cart at the price shown, or use the Request a Quote form: send the part number SFX3PCSNNNDXB, the quantity, and a photo of the nameplate or the old part, and we reply the same day. L. DeWitt McCarter is an authorized Bijur Delimon, Farval and LubeSite distributor in San Antonio, TX — (210) 494-1997.

Key Specifications

Manufacturer part numberSFX3PCSNNNDXB
BrandBijur Delimon
Selling unitEach (1 piece)
Pump typeSelf-contained electric motor-driven gear pump
Lube points servedUp to 100 (PDI injectors or SLR resistance fittings)
Outlets2x G 1/4 BSPP female, one each side of top plate; 2 plugs supplied for the unused side
Main feed line6 mm O.D. minimum recommended
Operating temperature40 °F to 105 °F (5 °C to 40 °C)
Oil fill screen40 mesh, removable (oil versions only)

What You'll Also Need

  • PDI builds: ZEM injectors (DS 35135), 0.01-1.5 cc per outlet; pump must reach 220 psi (15 bar) at the injector, 300 psi (21 bar) recommended.
  • SLR builds: meter units (resistance fittings) - offered in 8 resistance levels for flow ratios up to 1:128 (FL 36979).
  • Tubing: 6 mm O.D. nylon main line; 4 mm O.D. nylon from injectors or meter units to the lube points (FL 36979).
  • Pump outlet fitting AR397 (6 mm tube x 1/4 BSPP) with copper washer 35010 (Catalog B151 p.83-84).
  • Optional end-of-line pressure switch: PDI 26772-2 (225 psi); SLR single-phase 26641-2 (55 psi); SLR 3-phase 27444-1 + DIN connector MCC2510A (DS 36410; DS 36701).

Before You Order

  • This is a special or legacy build number that is not decoded by the SFX ordering grid. Match the complete P/N on the pump nameplate before ordering or replacing.
  • Mount upright only, at the lowest point of the lube network, so trapped air can migrate to line ends; trapped air can stop PDI injectors working (Manual 36412 p.3).
  • AC single-phase motors are S3 20 %: max 2 min 59 s on per cycle and off time at least 4x on time. 24 VDC and 3-phase motors are S1 continuous (Manual 36412 p.5; QS 36711).
  • Fluid grease (NLGI 000-00, max 40,000 cSt) is PDI only; SLR builds are oil only (DS 36410 p.4).
  • Single-phase: motor overload protection is not built in - provide it from the host machine; also fit a disconnect per IEC 60947-1/-3 and an RCD (DS 36410 p.3; Manual 36412 p.4).
  • Dirty oil is the most common cause of gear-pump failure: fill through the 40-mesh screen and inspect it every 4-5 fills (Manual 36412 p.48).

Choosing Between Options

  • PDI (code B) runs ZEM injectors with oil or fluid grease at 450 psi (31 bar); SLR (code A) runs meter units with oil at 75 psi (1-phase) or 130 psi (3-phase) (DS 36410; DS 36701).
  • Controls: terminal block (X/A) for PLC control; Timer (B) monitors level only; Lite (C) adds pressure- or cycle-switch monitoring; Premium (D) adds air pressure, oil streak, pre-lube, event (DS 36410 ordering grid; Manual 36412).
  • Replacing a TM-5: special SureFire II SFX71322-RK (110/220 VAC) or SFX71322-BK (24 VDC) delivers a fixed 2.5 cc per cycle to existing meter units (TS020).
  • Replacing AA/AB mechanical pumps: SureFire II package 71800-[voltage][size][material]J with one ZEM39 1.5 cc injector feeding the existing meter units (TS015).

Browse all Bijur Delimon products or request a quote for SFX3PCSNNNDXB — we reply the same day.
