Product Overview
Farval Barrel & Drum Pump

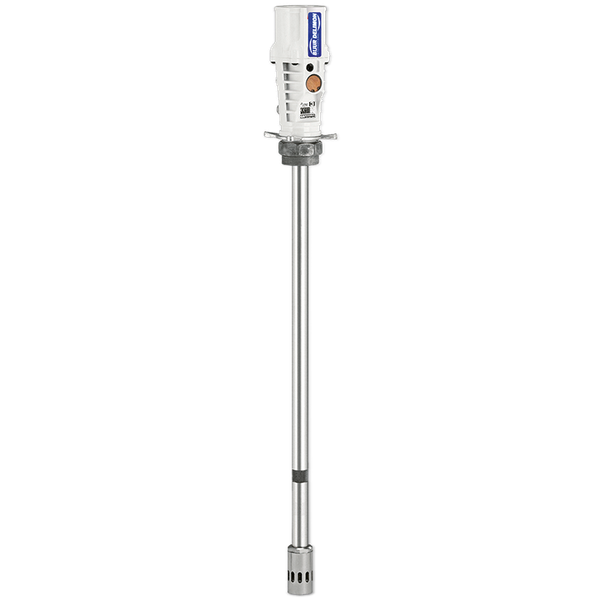

Farval F304 Pump Drum 55:1 400 lb without Vent
Part Number / SKU: F304 | Manufacturer: Farval | Availability: In Stock at Factory - Ships in 3-5 Business Days
Overview
Farval F304 (factory description: PUMP DRUM 55:1 400LB W/O VENT). Replacement part, kit or mounting accessory for a Farval drum or barrel pump installation; it is not a complete pump.
Specifying, quoting, or replacing F304
Add to cart at the price shown, or use the Request a Quote form: send the part number F304, the quantity, and a photo of the nameplate or the old part, and we reply the same day. L. DeWitt McCarter is an authorized Bijur Delimon, Farval and LubeSite distributor in San Antonio, TX — (210) 494-1997.
Key Specifications
| Manufacturer part number | F304 |
| Brand | Farval |
| Selling unit | Each (1 piece) |
| Pump | PM3 55:1 grease pump, cover mount |
| Container | 400 lb drum; length 1120 mm (44") |
| Pump type | 55:1 air-operated reciprocating piston, self-priming, grease to NLGI 2 |
| Air pressure | 20-140 psi (1.5-10 bar); 90 psi (6 bar) recommended |
| Max delivery | 0.7 lb/min (21 cu in/min) |
| Max output pressure | 7,700 psi (530 bar) at 140 psi air |
| Air inlet | 1/4" NPT(F) |
| Grease outlet | 1/4" NPT(F), includes 1/2"-27 male connector |
| Air piston | 2.75" (70 mm) dia x 1.5" (35 mm) stroke |
| Mounting | Drum cover with 2" bung, via bung adapter |
Before You Order
- Seal/repair kits (DS 35993 p.5): FGK1 air motor, FGK2 packing seals, FGK3 high-pressure valve, FGK4 foot valve, FGK5 check valve + HP cylinder & piston, F740958 intake.
- HP piston and cylinder are a matched set - replace both together [DS 35993 p.3].
- Follower plate is not included on F300/F302/F304 - order F962 (35 lb), F964 (120 lb) or F966 (400 lb) [Brochure 33136 p.10].
- Match the pump model and ratio (PM2, PM3, PM4, PM35, PM45, PM60, 9000 series) and the container size on the pump tag before ordering tubes, rods, covers or bung adapters.
- PM3 bung adapters differ by series: F2028 for F300/F302/F304, F366002 for 9035, F360002 for 9120/9400 [DS 35993 p.5].
